Motorguide tour edition foot pedal/steering cables

[kraetzer]

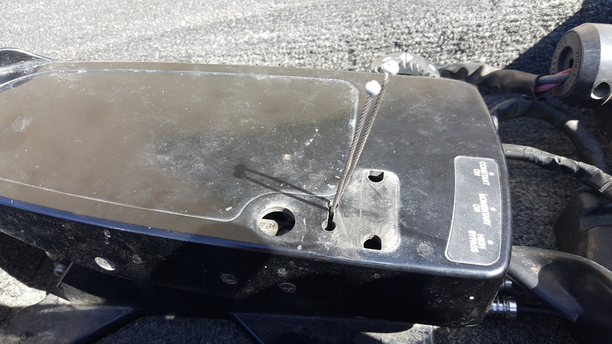

Need help on routing new steering cables through the footpedal of a 82lbs motorguide tour edition (about 8 years old). Old ones broke and got loose under it. Do both cables go over the same metal wheel?
Anybody have any tips on how to route them properly.

[milehi]

Trolling motor doctor, 800 944 9446. Nicks a good guy, call him in the morning ship it that day usuually

[DanIsaac]

I just ordered and received two new cables for my 109. Took less than an hour, and I suggest you change out both while you're in there... Nick took my order on Monday and I had them on Wednesday....Trolling Motor Doctor rocks....

Dan

[Trace]

No,

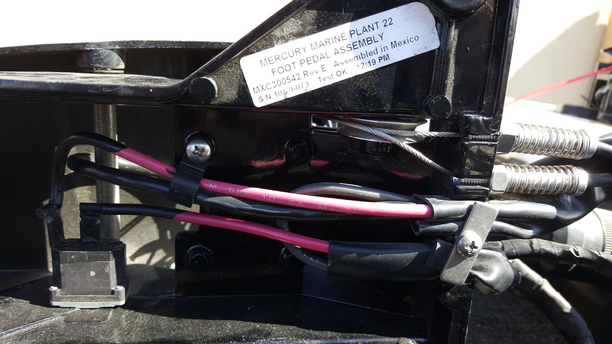

One cable per pulley. Keep them straight. One goes under that pulley then up to pedal. The other goes straight back to the rear pulley then to pedal. Any questions you can call me. 209 986 1524
Tracy

[kraetzer]

Got it. Thanks for the help. Now its time to go amd test it out

[milehi]

Bought a tm mount from Nick yesterday, got it today
